Read MoreLP1 Series Illuminated, Round Pushbutton Switch

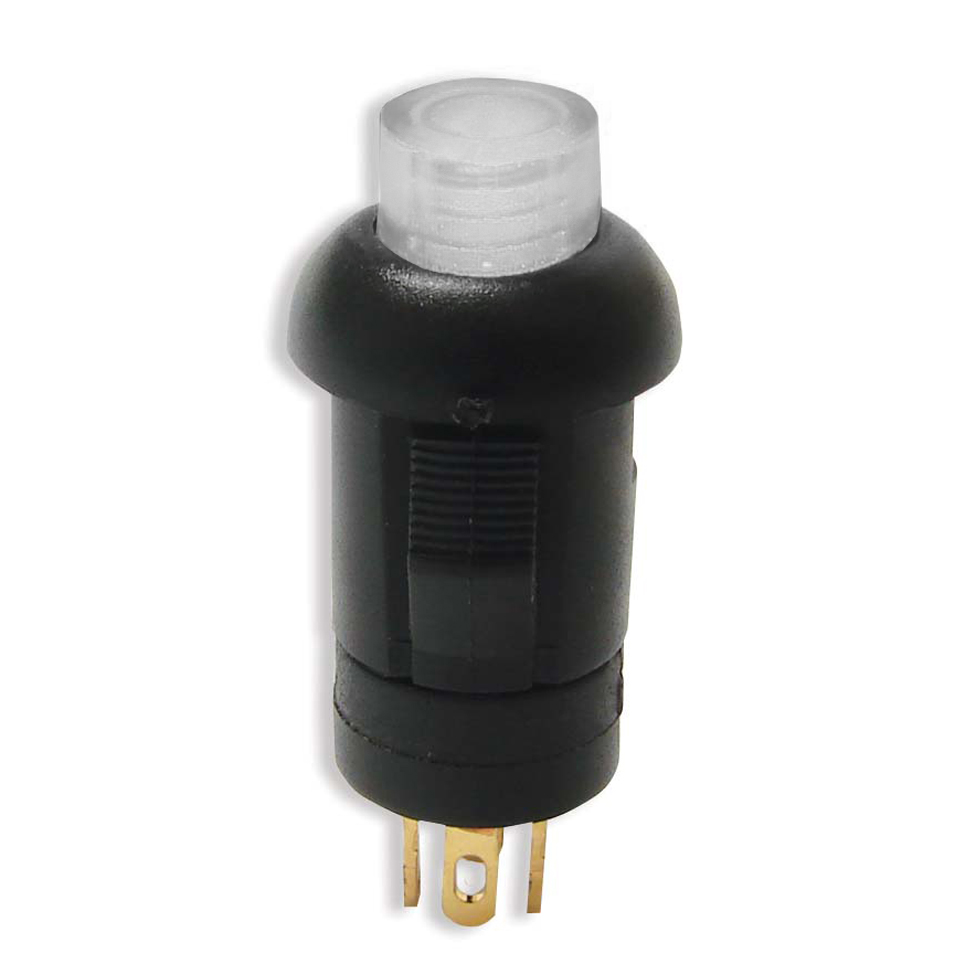

LP1 Series Illuminated, Round Pushbutton Switch
Stock Check for LP1OA1AW
Not the product you are looking for? Configure your product
PUSHBUTTON, 100mA, 30VDC, SPST, Off-(On), Panel Mount, Snap-In, Illuminated
About LP1 Series
- 8mm diameter panel cutout
- 100mA @ 30VDC
- SPST Off-(On)
- Solder termination
- LED illuminated – blue, green, red, white or yellow
- 5.4mm diameter, round button
- -40°C to 85°C operating temperature
- 50,000 cycle life
- 250gf operating force
- Travel: 1.8mm
LP1 Series Markets
Product Specifications
LP1OA1AW
PUSHBUTTON, 100mA, 30VDC, SPST, Off-(On), Panel Mount, Snap-In, Illuminated
- Series Name LP1
- PackagingBulk
- Current Rating100mA
- Voltage Rating30VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Snap-In
- Termination TypeSolder
- Actuator TypeRound, Button
- Illumination StyleFull
- Illumination ColorLED, White
- Illumination Voltage3.7VDC
- Panel Cutout DimensionsCircular - 8mm Dia.
- Operating Temperature-40°C to 85°C
