E-Switch products are essential in the home maintenance market, where they provide control, automation and safety across a wide range of tools, appliances and systems used for upkeep, repair and improvement of residential spaces.
Switches are used in HVAC systems, water heaters and lighting to manage power, temperature and environmental conditions. They also detect abnormal conditions (water leaks, pressure changes, etc.) and trigger alarms or shutoffs to prevent damage.
Switches enable automation of lighting, irrigation and ventilation systems, often integrated with smart home platforms. Many E-Switch products are designed to withstand the dust, moisture and temperature extremes you’ll find in garages, basements and outdoor areas.
Don’t hesitate to contact E-Switch with questions about your next project. Our dedicated customer service representatives, expert engineers and local sales support teams will be with you every step of the way.
Click on the Home Maintenance applications below to see what E-Switch products were used for each application and what functions they perform.
Usage: Control Panel On/Off Power Switch
The PV4 was perfect for this application because of its IP65 seal rating, 19mm panel cutout, power symbol illumination with LED color options (including bi-color and RGB) and latching function.
Usage: Control panel switches
The PV1 provides a sealed IP65 rating, 19mm panel cutout, 200,000-cycle electrical life and multiple termination and finish options.
The PV3 is sealed to an IP67 rating, has a 16mm panel cutout and the potential for illumination (dot or ring).
Usage: Reset Switch

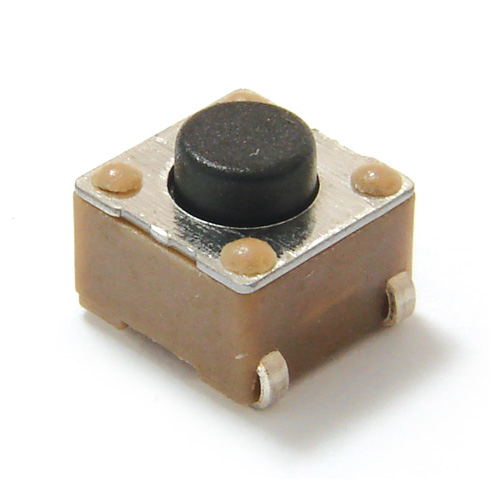

The TL3301 was selected for its SMT design, 6mm x 6mm size and variety of operating force and actuator height options.
Usage: Keylock Switch
The KO Series provides the security of a keylock switch (variety of key types, key pull and key code options) with an electrical rating of up to 4A, 125VAC.
Usage: Power Switch

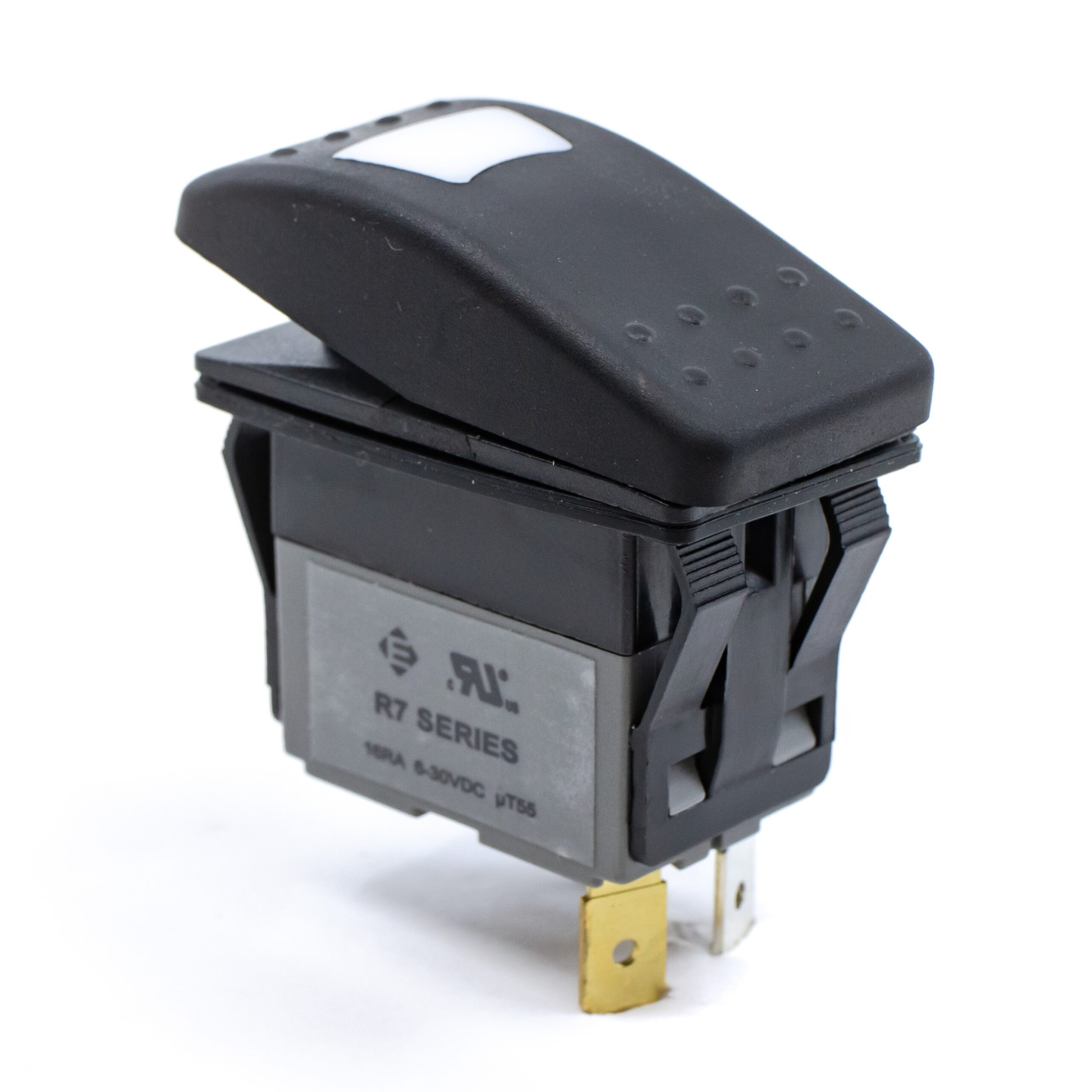

The R7 is a fully sealed (IP67), UL power rated (up to 20A), LED illuminated rocker switch with up to three actuator positions and an ergonomic design for harsh environments.
The ULV4 is also fully sealed (IP67), UL certified (3A, 125/250VAC) and has 43 different illuminated custom graphics to choose from.
Usage: Power Switch
The RA1 is a power rocker switch (up to 16A with UL approval) with full LED illumination ability, multiple housing and actuator customizations and an IP54 rating with PVC cap.
Usage: Ignition Switch
The KO Series provides the security of a keylock switch (variety of key types, key pull and key code options) with an electrical rating of up to 4A, 125VAC.
Usage: On/Off Power Switch

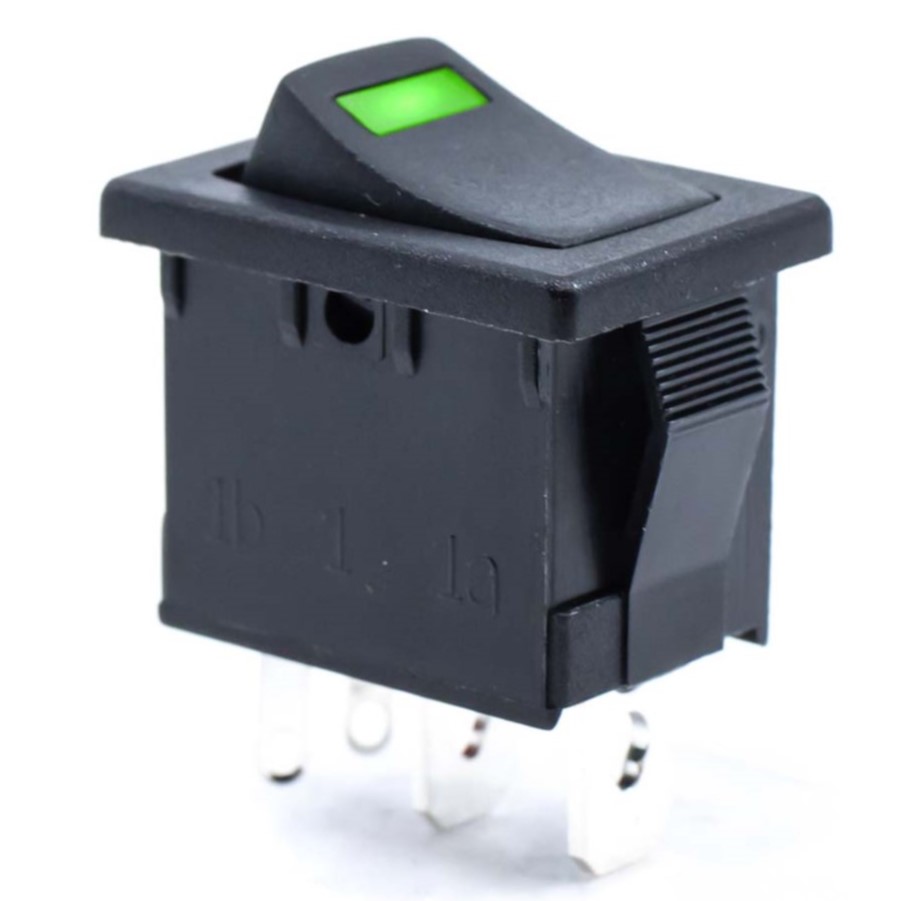

The R1966 is perfect for this application because of its UL listed power ratings (up to 15A, 125VAC), LED illumination options and robust operating temperature (-30°C to 105°C).
Usage: Power Switch

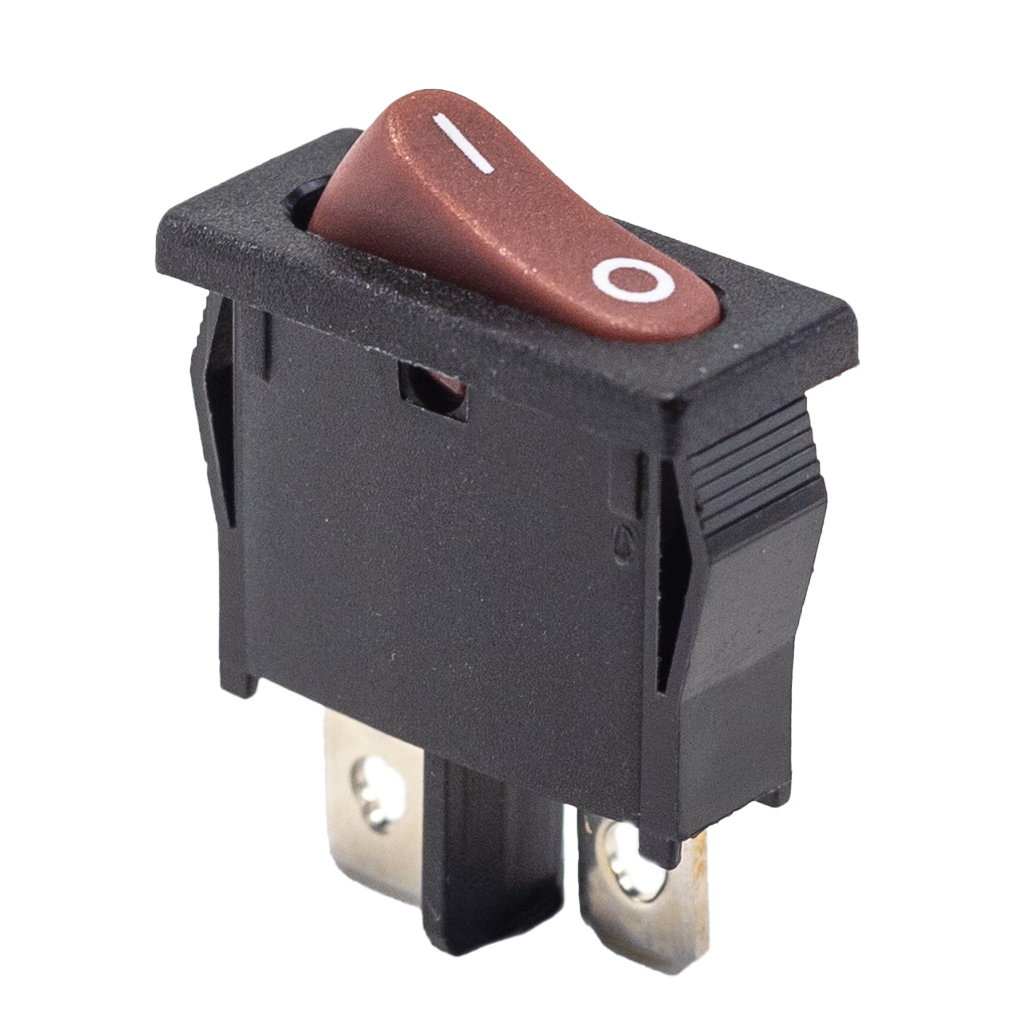

The R6 Series was perfect for this application because of its slim, panel mount snap-in design (19.2mm x 6.65mm), high power ratings (up to 10A, 125VAC with UL and cUL approval) and latching function option.
Usage: Power Switch
The R7 Series was selected for this application because of its fully sealed properties (IP67), UL approved power ratings (up to 20A), LED illumination options (including dual LED) and ergonomic design for harsh environments.
Usage: Power Switch

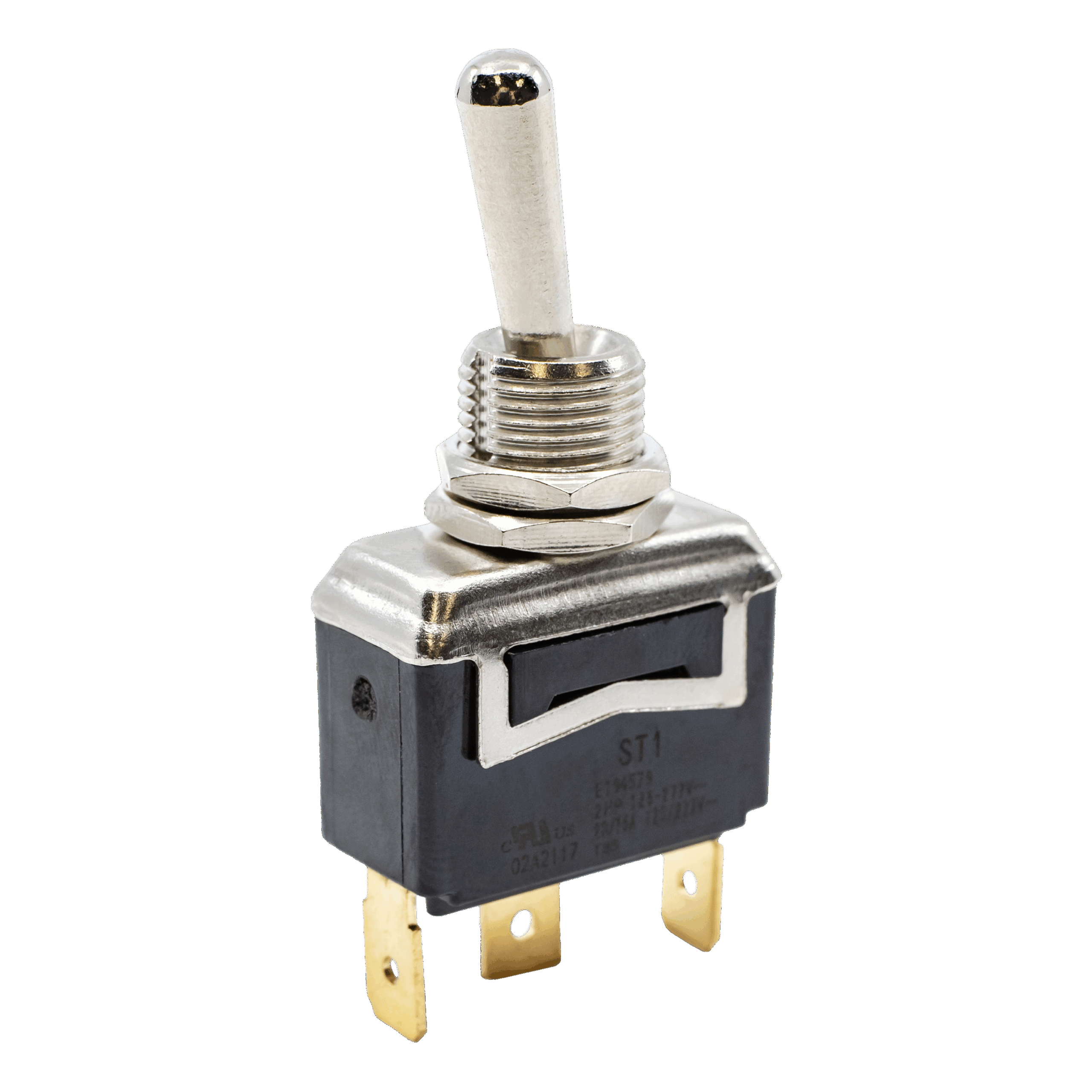

The ST1 was selected as a high current, power toggle switch (up to 20A or 2.0HP with UL and cUL approval) because of its 12mm panel cutout, bushing options and different termination styles (tab, solder, screw or wire leads).
Usage: Power/Test Buttons
The TL3301 was utilized for its surface mount design, compact 6mm x 6mm size, operating force options and actuator height and cap styles.
