POWER RATED SWITCHES
Power ratings define the maximum voltage and current the switch can safely handle without overheating, arcing or failing. Using a switch beyond its rated power can lead to electrical damage or reduced lifespan. Proper power ratings ensure safe, reliable operation and help match the switch to the specific demands of the electrical circuit or device it’s controlling.
Find Your Product
If you need help finding what you're looking for, use our advanced parametric search to find your specific product.
Product Search
100 Series
100 Series Miniature Toggle Switch
- Panel mount or through hole
- Gold – 0.4VA, 28V max. (AC or DC)
- Silver – 5A, 120VAC or 28VDC; UL
- 1 – 4 pole; latching or momentary
- 17 mounting options
- 11 actuator options
- 15 bushing options
100A Series
100A Series Sealed, Miniature Toggle Switch
- Panel mount or through hole; IP67
- Gold – 0.4VA, 28V max. (AC or DC)
- Silver – 3A, 120VAC or 28VDC; UL
- 1 or 2 pole; latching or momentary
- Straight, rt. angle, or rt. angle vert.
- Two actuator height options
- Threaded or nonthreaded bushing
200 Series
200 Series Subminiature Toggle Switch
- Panel mount or through hole
- Gold – 0.4VA, 28V max. (AC or DC)
- Silver – 3A, 120VAC or 28VDC; UL
- 1 or 2 pole; latching or momentary
- Straight, rt. angle, or rt. angle vert.
- Five actuator height options
- Eight bushing options
200A Series
200A Series Sealed, Subminiature Toggle Switch
- Through hole; IP67 rated
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A, 120VAC or 28VDC; UL
- 1 or 2 pole; latching or momentary
- Straight, rt. angle, or rt. angle vert.
- Two actuator height options
- Non-threaded bushing
500 Series
500 Series Miniature Slide Switch
- Panel mount, or through hole
- Gold- 0.4VA, 20V max. (AC or DC)
- Silver- 5A, 120VAC; 2A, 250VAC; UL
- SPDT or DPDT; 2 or 3 positions
- Vertical or right angle actuation
- Variety of termination options
- Epoxy sealed terminals
500A Series
500A Series Subminiature Slide Switch
- Through hole or SMT
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A, 120VAC; 1A, 250VAC; UL
- SPDT; 2 or 3 positions; latching
- Vertical or right angle actuation
- PC pin or gullwing termination
- Epoxy sealed terminals
700 Series
700 Series Snap-Acting Pushbutton Switch
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- Variety of termination options
- Cap style and color options
- Snap acting contact design
700 Series
700 Series Snap-Acting, Panel Mount Pushbutton Switch
- Panel mount, Snap-In
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- Solder or PC Pin termination
- Bezel option; cap color options
- Snap acting contact design
700A Series
700A Series Sealed Pushbutton Switch
- IP67 rated
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- Solder or PC pin; V-bracket option
- Snap acting contact design
700C Series
700C Series Alternate Action, Miniature Pushbutton Switch
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT On-On
- Solder or PC pin; V-bracket option
- Straight, rt. angle, or rt. angle vert.
- Push-on, push-off alternate action
800 Series
800 Series Subminiature Pushbutton Switch
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Cap style and color options
- Straight, rt. angle, or rt. angle vert.
- Butt contact design

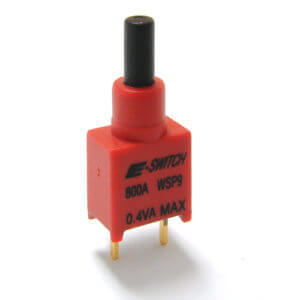

800A Series
800A Series Sealed, Subminiature Pushbutton Switch
- Through hole; IP67 rated
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Cap style and color options
- Straight, rt. angle, or rt. angle vert.
- Butt contact design

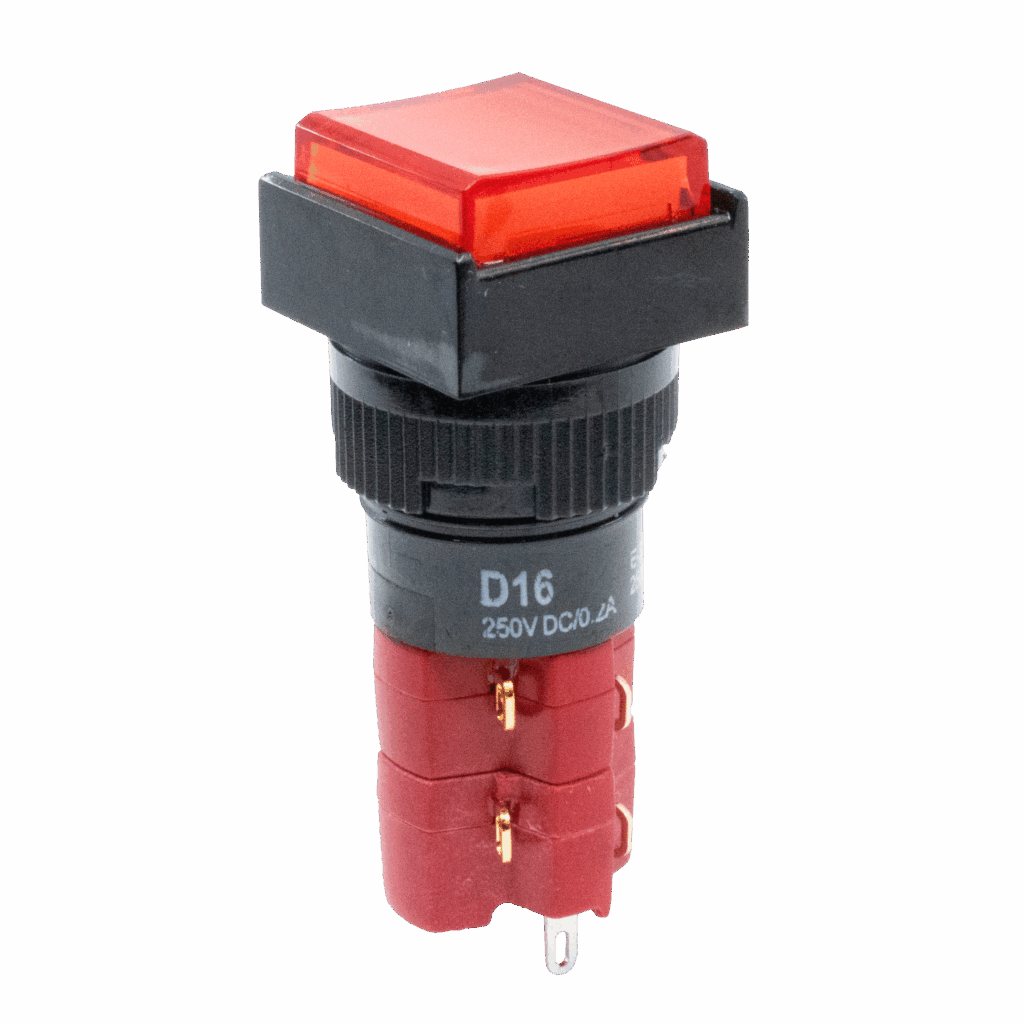

D16 Series
D16 Series Illuminated Pushbutton Switch
- 16mm diameter panel cutout
- Up to 8A, 125VAC; UL
- Modular interface/contact block
- 1 – 4 pole; latching or momentary
- Solder termination
- Circular, square, or rectangle head
- LED, neon, or incandescent lamp
E100 Series
E100 Series Emergency Stop, Pushbutton Switch
- IP65
- 16mm panel cutout size
- Multiple agency approvals
- Contact arrangement options
- Many contact ratings
- Pushlock turn to reset design
- Multiple illumination options

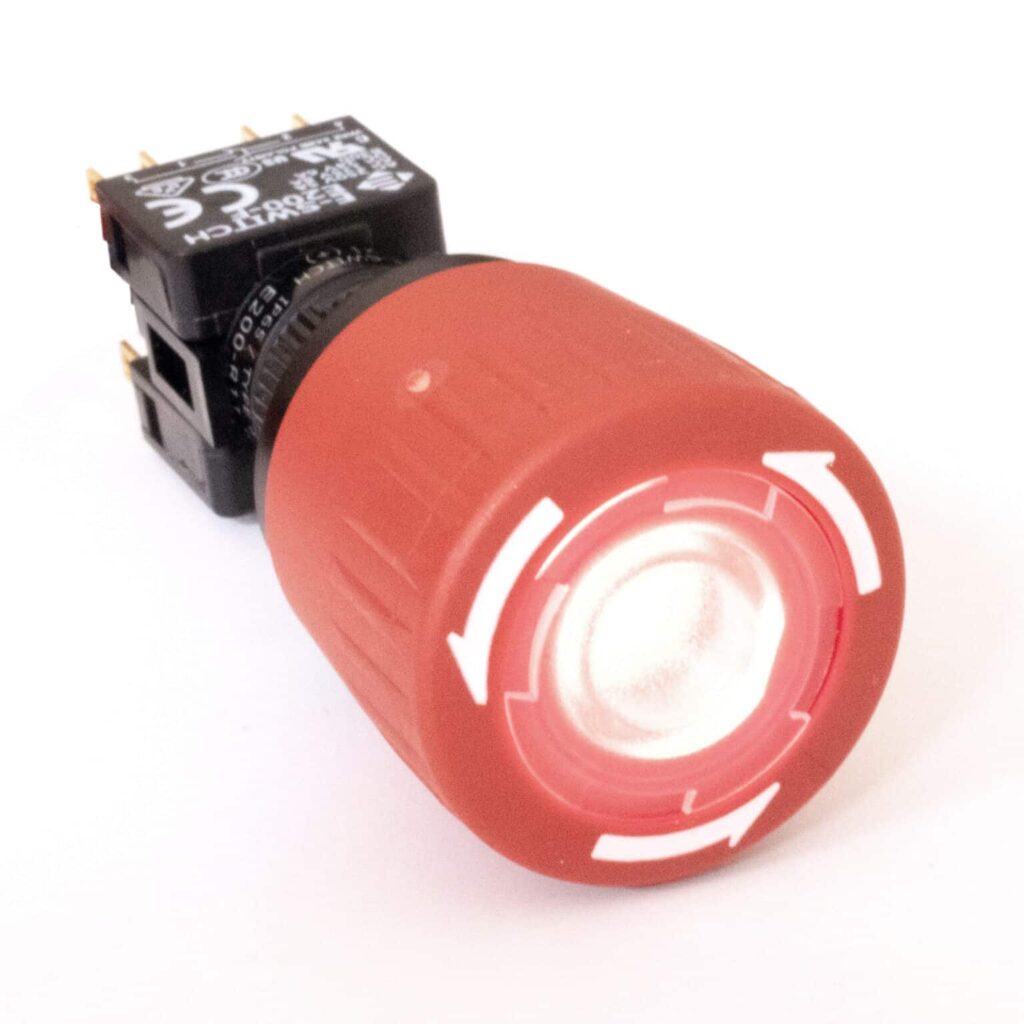

E200 Series
E200 Series Emergency Stop, Pushbutton Switch
- IP65
- 16mm panel cutout size
- Multiple agency approvals
- Contact arrangement options
- Many contact ratings
- Pushlock turn to reset, design
- Multiple illumination options
KJE32 Series
KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch
- 46mm x 22mm panel cutout
- Up to 20A, 127VAC; UL; IP55
- Heavy Duty Industrial Design
- Variety of function options
- Coil voltage & frequency options
- Black or yellow bezel
- Actuator marking options
LA Series
LA Series Sealed, Illuminated Pushbutton Switch
- Three panel cutout options
- Up to 8A, 125VAC; UL; IP65
- 1 – 4 pole; latching or momentary
- Pilot lamp indicator option
- Modular interface/contact block
- Actuator head style options
- LED, neon, or incandescent lamp
LS Series
LS Series Snap Action Switch
- Chassis or thru hole rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 15A, 125/250VAC; UL, VDE
- SPDT, SPST-NC or SPST-NO
- Solder, quick connect or PC pin
- Pin plunger or six lever options
- 25gf – 250gf operating force

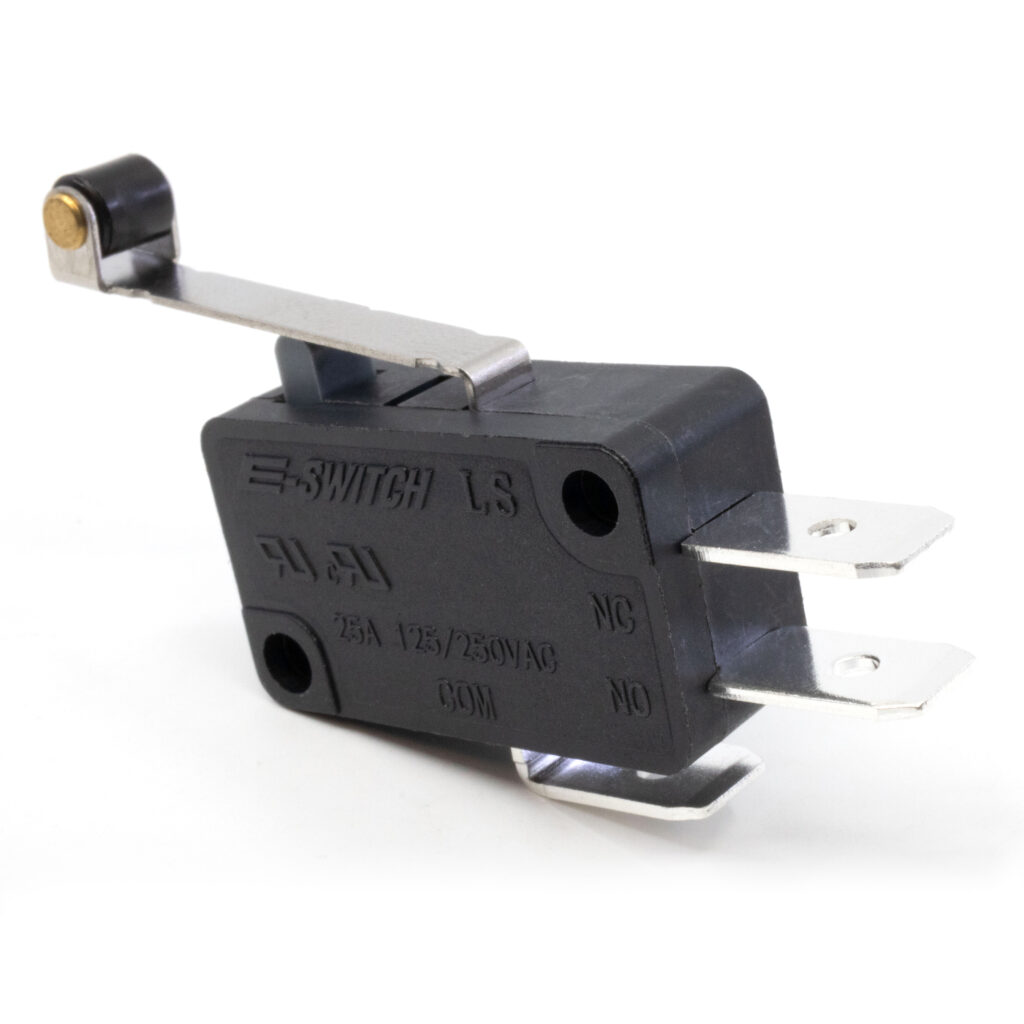

LS25 Series
LS25 Series High Current Snap Action Switch
- Chassis mount
- High Current snap action switch
- Silver – 25A, 125/250VAC; UL
- SPDT; On-(Off); IP40 rated
- Solder or quick connect
- Pin plunger, or six lever options
- 90gf – 400gf operating force
PA4 Series
PA4 Series Illuminated, Power Pushbutton Switch
- 19mm x 13mm panel cutout
- 16A, 125/250VAC; UL
- SPST or DPST; latching or mom.
- Std. button, or rubber cap (IP54)
- Solder or quick-connect
- LED illumination options
- Actuator marking options
PA5 Series
PA5 Series Power Pushbutton Switch
- Rear or lateral panel mount
- 16A, 125/250VAC; UL
- SPST or DPST; latching or mom.
- Engineered for use as a foot switch
- Plunger for cap
- Solder or quick-connect
- -20 to +125°C operating temp
PB1973 Series
PB1973 Series Illuminated, Power Pushbutton Switch
- 19.2mm x 13mm panel cutout
- 15A, 250VAC; UL
- SPST or DPST; latching or mom.
- Quick connect termination
- Rectangular button actuator
- LED or neon illumination
- Housing and actuator color options
PB2 Series
PB2 Series Illuminated, Power Pushbutton Switch
- 30mm x 22mm panel cutout
- 15A, 250VAC; UL; IP54
- SPST or DPST; latching
- Quick connect termination
- Dual, square button actuator
- LED illumination options
- Actuator marking options

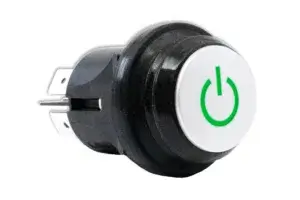

PB66 Series
PB66 Series Illuminated, Power Pushbutton Switch
- 25mm diameter panel cutout
- 16A, 127VAC; UL; IP66
- DPST Off-On
- Quick connect termination
- Round button actuator
- Illuminated power symbol option
- Laser etched power symbol option
PP1 Series
PP1 Series Push-Pull Pushbutton Detector Switch
- 28.4mm x 13.5mm panel cutout
- Up to 16A or 1HP, UL; IP40 rated
- Panel mount snap-in
- SPDT; push-pull or momentary
- Pin plunger, or push-pull plunger
- Quick connect termination options
- Black or white body and actuator
PP2 Series
PP2 Series Push-Pull Pushbutton Detector Switch
- 36.5mm x 13.5mm panel cutout
- Up to 16A or 1HP, UL; IP40 rated
- Panel mount snap-in
- DPDT; push-pull or momentary
- Pin plunger, or push-pull plunger
- Quick connect termination options
- Black or white body and actuator
PR1 Series
PR1 Series Illuminated, Power Pushbutton Switch with PVC Cap
- 25mm diameter panel cutout
- 16A, 125VAC; UL
- SPST or DPST; latching or mom.
- Quick-connect termination
- Round actuator; color options
- Illumination & marking options
- IP54 with PVC Cap: ACC-F03
PVHC4 Series
PVHC4 Series Illuminated, High Current Anti-Vandal Switch
- 19m panel cutout
- 20A, 250VAC, UL; IP67 rated
- SPST; latching or momentary
- Flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel or black anodized
PVHC7 Series
PVHC7 Series Illuminated, High Current Anti-Vandal Switch
- 22m panel cutout
- 20A, 250VAC, UL; IP67 rated
- SPST; latching or momentary
- Flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel or black anodized
R1966 Series
R1966 Series Illuminated, Power Rocker Switch
- 19.2mm x 13mm panel cutout
- 15A, 125VAC; UL
- SPST or SPDT; latching or mom.
- QC-tabs, solder, PC pin, or wires
- Housing and actuator color options
- LED illumination options
- Actuator marking options
R1973 Series
R1973 Series Illuminated, Power Rocker Switch
- 19.2mm x 13mm panel cutout
- 9A, 125VAC; UL
- SPST or DPST; latching or mom.
- QC-tabs, PC pin, or wire leads
- Housing and actuator color options
- LED or Neon illumination options
- Actuator marking options
R4 Series
R4 Series Illuminated, Power Rocker Switch
- 30mm x 11mm panel cutout
- Up to 20A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- LED or Neon illumination options
- Actuator marking options
R5 Series
R5 Series Illuminated, Power Rocker Switch
- 30mm x 22mm panel cutout
- Up to 20A, 125VAC; UL
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- Actuator color options
- LED or Neon illumination options
- Actuator marking options
R6 Series
R6 Series Slim, Power Rocker Switch
- 19.2mm 6.65mm panel cutout
- 10A, 125VAC; UL
- SPST; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- Non-illuminated
- Actuator marking options
R7 Series
R7 Series Sealed, Illuminated, Power Rocker Switch
- 37mm 21.2mm panel cutout
- Up to 20A, 125VAC; UL; IP67
- 1 or 2 pole; latching or mom.
- QC-tabs, solder, screw, or wires
- Many actuator style options
- LED illumination options
- Custom actuator marking avail.
RA1 Series
RA1 Series Illuminated, Power Rocker Switch with PVC Cap
- 19.2mm 13mm panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- QC-tabs, solder, PC pin, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P01
RA2 Series
RA2 Series Dual Power Rocker Switch with PVC Cap
- 22mm x 19.2mm panel cutout
- Dual rocker switch
- Up to 16A, 250VAC; UL
- SPST or SPDT; latching or mom.
- Quick-connect, solder, or wires
- Actuator marking options
- IP54 with PVC cap: ACC-P02
RA4 Series
RA4 Series Illuminated, Power Rocker Switch with PVC Cap
- 22mm 19.2mm panel cutout
- Up to 16A, 125VAC; UL
- 1 or 2 pole; latching or mom.
- Quick connect, PC pin, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P02
RA8 Series
RA8 Series Illuminated, Power Rocker Switch with PVC Cap
- 19.2mm 13mm panel cutout
- Up to 16A, 125VAC; UL
- SPST or DPST; Off-On
- Quick connect, PC pin, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P01
RB1 Series
RB1 Series Illuminated, Power Rocker Switch with PVC Cap
- 30mm 11mm panel cutout
- Up to 20A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-F01
RB2 Series
RB2 Series Illuminated, Power Rocker Switch with PVC Cap
- 30mm 22mm panel cutout
- Up to 20A, 125VAC; UL
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-F02
RB3 Series
RB3 Series Sealed, Illuminated, Power Rocker Switch
- 30.2mm 13.8mm panel cutout
- Up to 25A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- Flat actuator
- LED illumination options
- Actuator marking options
RB5 Series
RB5 Series Sealed, Illuminated, Power Rocker Switch
- 30.2mm 22mm panel cutout
- Up to 25A, 125VAC; UL
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- Flat actuator
- LED illumination options
- Actuator marking options
RBW2 Series
RBW2 Series Sealed, Illuminated, Power Rocker Switch
- 30mm 22mm panel cutout
- Up to 16A, 125VAC; UL; IP66
- DPST or DPDT; latching
- Quick connect, or wire leads
- Housing and actuator color options
- LED illumination options
- Actuator marking options
RCA1913 Series
RCA1913 Series Sealed, Power Rocker Switch
- 19.2mm x 13mm panel cutout
- Up to 16A, 125VAC; UL; IP68
- SPST or SPDT; latching function
- QC-tabs, solder, PC pin, or wires
- Housing and actuator color options
- Actuator marking options
- Right angle mounting option
RD1 Series
RD1 Series Compact, Power Rocker Switch
- 19.2mm 6.8mm panel cutout
- Up to 16A, 125VAC; UL
- SPST Off-On
- Quick connect, or wire leads
- Housing and actuator color options
- Non-illuminated
- Actuator marking options
RE1 Series
RE1 Series Oval, Illuminated, Power Rocker Switch
- 23.3mm 13.5mm Oval panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching
- Quick connect, or wire leads
- Housing and actuator color options
- LED illumination options
- Actuator marking options
RR1 Series
RR1 Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching
- Quick connect, solder, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P03
RR3112 Series
RR3112 Series Round, Illuminated, Power Rocker Switch
- 20.2mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- LED or NEON illumination options
- Actuator marking options
RR3130 Series
RR3130 Series Round, Power Rocker Switch
- 18.2mm diameter panel cutout
- Up to 10A, 125VAC; UL
- 1 or 2 pole; latching
- Solder, or wire leads termination
- Housing and actuator color options
- Actuator marking options
- Threaded body with nut design
RR3402 Series
RR3402 Series Round, Paddle Style, Power Rocker Switch
- 15mm diameter panel cutout
- Up to 6A, 125VAC; UL
- SPST or SPDT; latching
- Solder, or wire leads termination
- Black housing and actuator
- Paddle style actuator
- Threaded body with nut design
RR5 Series
RR5 Series Round, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 20A, 125VAC; UL
- SPST; latching or momentary
- Quick connect, solder, or wires
- Housing and actuator color options
- Actuator marking options
- Short body design
RR8 Series
RR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- DPST; Off-On
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P03
RRA Series
RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 22mm diameter panel cutout
- Up to 15A, 125VAC; UL
- 1 or 2 pole; latching
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P04
RRG3 Series
RRG3 Series Round, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, solder, or wires
- Housing and actuator color options
- Non-illuminated, glossy finish
- Actuator marking options
RRS20 Series
RRS20 Series Round, Sealed, Illuminated, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 16A, 250VAC; UL; IP68
- SPST or SPDT; latching function
- Quick connect, solder or wire leads
- LED illumination options
- Actuator color options
- Actuator marking options
RSC Series
RSC Series Illuminated, Power Rocker Switch with Bi-Color Actuator
- Four panel cutout options
- Up to 20A, 125VAC; UL; IP54
- SPST or SPDT; latching or mom.
- Quick connect, solder, or wires
- Housing and actuator color options
- LED illumination options
- Actuator marking options
RVW Series
RVW Series Sealed, Power Rocker Switch
- 36.8mm x 21mm panel cutout
- Up to 20A, 125VAC; UL; IP54
- 1 or 2 pole; latching or mom.
- QC-tabs, solder, screw, or wires
- Housing and actuator color options
- Actuator marking options
- Matte or Glossy finish
SAV4 Series
SAV4 Series Illuminated, High Current Anti-Vandal Switch
- 19mm panel cutout
- 15A, 125VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, dot, or power symbol
- Stainless steel or black anodized
SAV7 Series
SAV7 Series Illuminated, High Current Anti-Vandal Switch
- 22mm panel cutout
- 15A, 125VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, or power symbol
- Stainless steel or black anodized
SAV8 Series
SAV8 Series Illuminated, High Current Anti-Vandal Switch
- 25mm panel cutout
- 15A, 125VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, or ring/power symbol
- Stainless steel or black anodized
ST1 Series
ST1 Series High Current, Power Toggle Switch
- 12mm diameter panel cutout
- Up to 20A, 125VAC, UL
- 1 pole; latching or momentary
- Solder, QC-tabs, screw, or wires
- Standard or short metal bat
- M12 x 1.0 or 15/32-32 bushing
- 0°C to 85°C operating temp
ST2 Series
ST2 Series High Current, Power Toggle Switch
-
- 12mm diameter panel cutout
- Up to 20A, 125VAC, UL
- 2 pole; latching or momentary
- Solder, QC-tabs, screw, or wires
- Standard metal bat actuator
- M12 x 1.0 or 15/32-32 bushing
- 0°C to 85°C operating temp
View Series
ST3 Series
ST3 Series High Current, Power Toggle Switch
- 12mm diameter panel cutout
- Up to 24A, 125VAC, UL
- 3 pole; latching
- Solder, QC-tabs, screw, or wires
- Standard metal bat actuator
- M12 x 1.0 bushing
- 0°C to 85°C operating temp
ST4 Series
ST4 Series High Current, Sealed, Power Toggle Switch
- 12mm diameter panel cutout; IP68
- Up to 20A, 125VAC/30VDC, UL
- 1 or 2 pole; latching or momentary
- Solder, QC-tabs, screw, or wires
- Standard metal bat, or plastic bat
- 15/32-32 bushing
- -10°C to 55°C operating temp
ST5 Series
ST5 Series High Current, High Temperature, Power Toggle Switch
- 12mm diameter panel cutout; IP40
- Up to 20A, 125VAC/30VDC, UL
- 1 or 2 pole; latching or momentary
- Solder, QC-tabs, screw, or wires
- Standard metal bat, or plastic bat
- 15/32-32 bushing
- -10°C to 125°C operating temp
ULV4 Series
ULV4 Series UL Certified, Illuminated Anti-Vandal Switch
- 19mm panel cutout
- 3A, 250VAC, UL; IP67 rated
- SPDT or DPDT; latching or mom.
- Flat actuator
- Solder, wire leads, or socket
- LED dot, ring, power, or graphic
- Nickel, stainless steel, or black
View Series
ULV7 Series
ULV7 Series UL Certified, Illuminated Anti-Vandal Switch
- 22mm panel cutout
- 3A, 250VAC, UL; IP67 rated
- SPDT or DPDT; latching or mom.
- Flat actuator
- Solder, wire leads, or socket
- LED ring, ring/power, or graphic
- Stainless steel or black anodized
View Series
ULV8 Series
ULV8 Series UL Certified, Illuminated Anti-Vandal Switch
- 25mm panel cutout
- 3A, 250VAC, UL; IP67 rated
- SPDT or DPDT; latching or mom.
- Flat actuator
- Solder, wire leads, or socket
- LED ring, ring/power, or graphic
- Stainless steel or black anodized
View Series
WB2 Series
WB2 Series Sealed, Power Rocker Switch
- 30mm x 22mm panel cutout
- Up to 20A, 125VAC; UL; IP55
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- Actuator marking options
- Non-illuminated
